02 - Wiring 2 wire installation

2-Wire

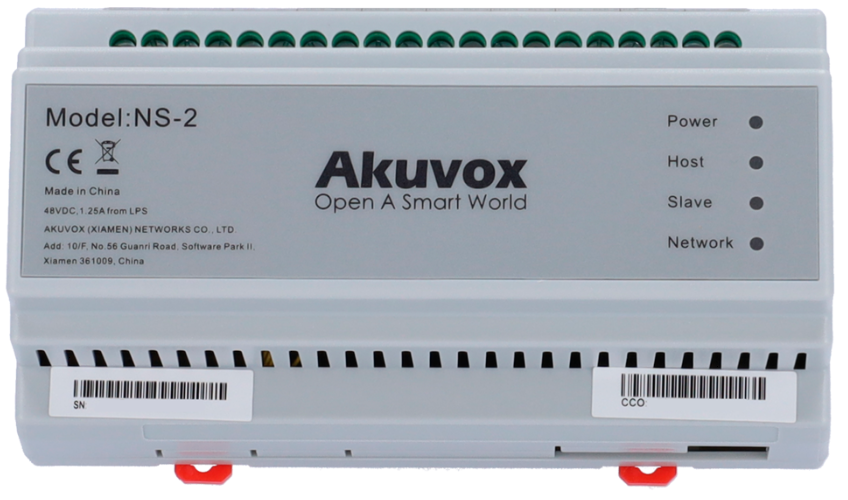

AK-NS-2

The NS-2 is an Akuvox 2-wire IP network switch which provides a convenient way to upgrade analog intercom systems, with no need for rewiring. Its super long transmission distance & good compatibility with existing lines, makes it fit for most of the old building.

• Support network and power supply for R20A-2 or C313W-2 through 2-wire cable
• Support multi-level cascade through a 2-wire cable
• Connects up to 6 pcs of Akuvox 2-wire IP intercom devices
• Super long transmission distance via 2-wire cable
• Powered by 48VDC power supply unit
• Rail mounting installation

Physical & Power

• Communication: TCP/IP
• RJ45 port: 1 x RJ45 port, 10/100Mbps adapter
• 2- wire ports: 6 pair
• Working voltage: 48V
• Status Indicator: 4
• Installation: Rail mounting
• Working temperature: -20℃~+50℃
• Storage temperature: -20℃~+70℃
• Working humidity: 10%~90%
• Dimension: 161 x 90 x 65 (mm)

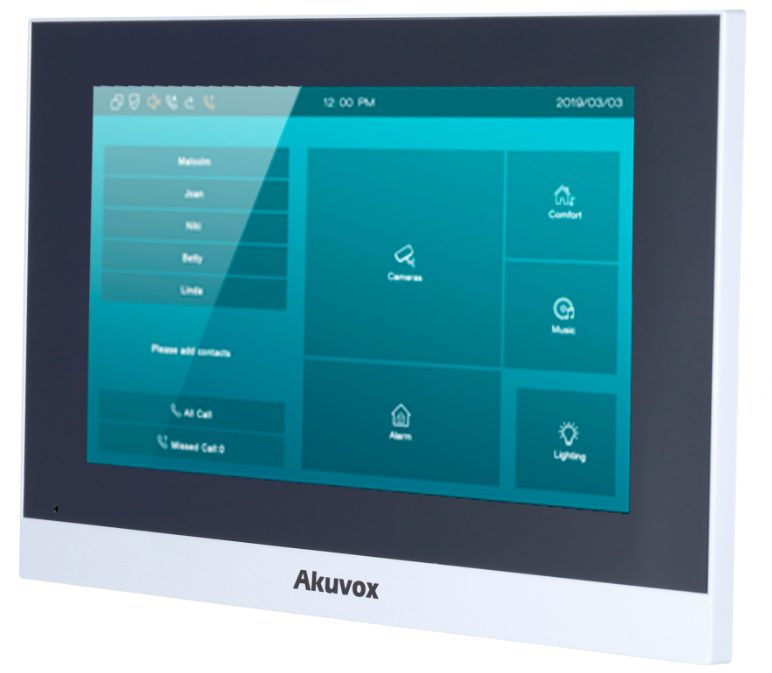

AK-C313W-2

The Akuvox C313W- 2 multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touchscreen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touchscreen display.

• Ultra-clear, stylish appearance
• Thin profile and small footprint
• 7-inch capacitive touch screen with energy-saving mode
• Two-way audio communication with other units in the 2-wire IP network
• Powered by NS- 2 or external source
• Super long transmission distance via 2-wire cable
• Support US or European electrical wall box mounting

Physical & Power

• Front panel: Plastic
• RAM / ROM: 64MB / 128MB
• Display: 7-Inch TFT LCD
• Screen: 7-inch capacitive touchscreen
• Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
• RS485 port: Support
• Relay out: 1
• Bell in: 1
• I/O: 8
• Microphone: -58dB
• Speaker: 4Ω / 2W
• 2-wire ports: 2 pair
• Ethernet ports: 1xRJ45, 10/100Mbps adaptive
• 48V DC connector (if not using NS-2)
• Installation: Wall-mounted & Desktop
• Dimension: 200.2x132.2x27.2mm
• Working Humidity: 10~90%
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C ~ +70°C

AK-R20A-2

2-wire video intercom systems remain in demand as long as there are so many houses left with old wiring in the walls, which is indeed problematic to replace. Akuvox came up with a solution to address the issue to allow you to get the benefits of an IP network-type system, but with old wiring and with no replacements done

• Vandal-resistant body, with a flush button
• Two-pin wire for power supply and network access
• Wide-angle camera: 110º (H), 58º (V)
• IC/ID Card Reader embedded
• Two-way audio communication over IP networks with Echo Cancellation and noise suppression
• H.264 video compression

Physical & Power

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Button: 1 call button
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Relays out: 1
• Inputs: 1
• Microphone: 1
• Speaker: 1
• Power Interface：1
• Power supply：48VDC
• Waterproof & Dust-proof: IP65
• Installation: Flush-mounted or Wall-mounted
• Flush-mounted DIM: 189x120x56.5mm
• Wall-mounted DIM: 145x85x27.5mm
• Working Humidity: 10~90%
• Working Temperature: -30°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

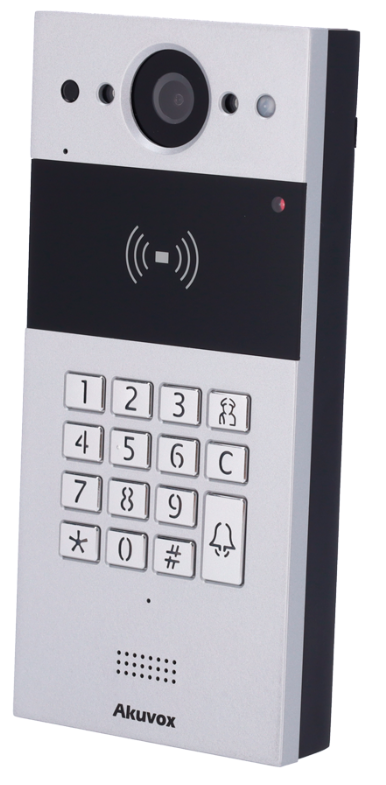

AK-R20K-2

2-wire video intercom systems remain in demand as long as there are so many houses
left with old wiring in the walls, which is indeed problematic to replace. Akuvox came
up with a solution to address the issue to allow you to get the benefits of an IP network-
type system, but with old wiring and with no replacements done

• Two-pin wire for power supply and network access
• Wide-angle camera: 110º (H), 58º (V)
• IC/ID Card Reader and keypad embedded
• Two-way audio communication over IP networks with Echo Cancellation and noise suppression
• H.264 video compression

Physical & Power

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Keypad: Yes
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Relays out: 1
• Inputs: 1
• Microphone: 1
• Speaker: 1
• Power Interface：1
• Power supply：48VDC
• Water & Dust-proof: IP65
• Installation: Flush-mounted or Wall-mounted
• Flush-mounted DIM: 226x108x52mm
• Wall-mounted DIM: 185x85x29mm
• Working Humidity: 10~90%
• Working Temperature: -30°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

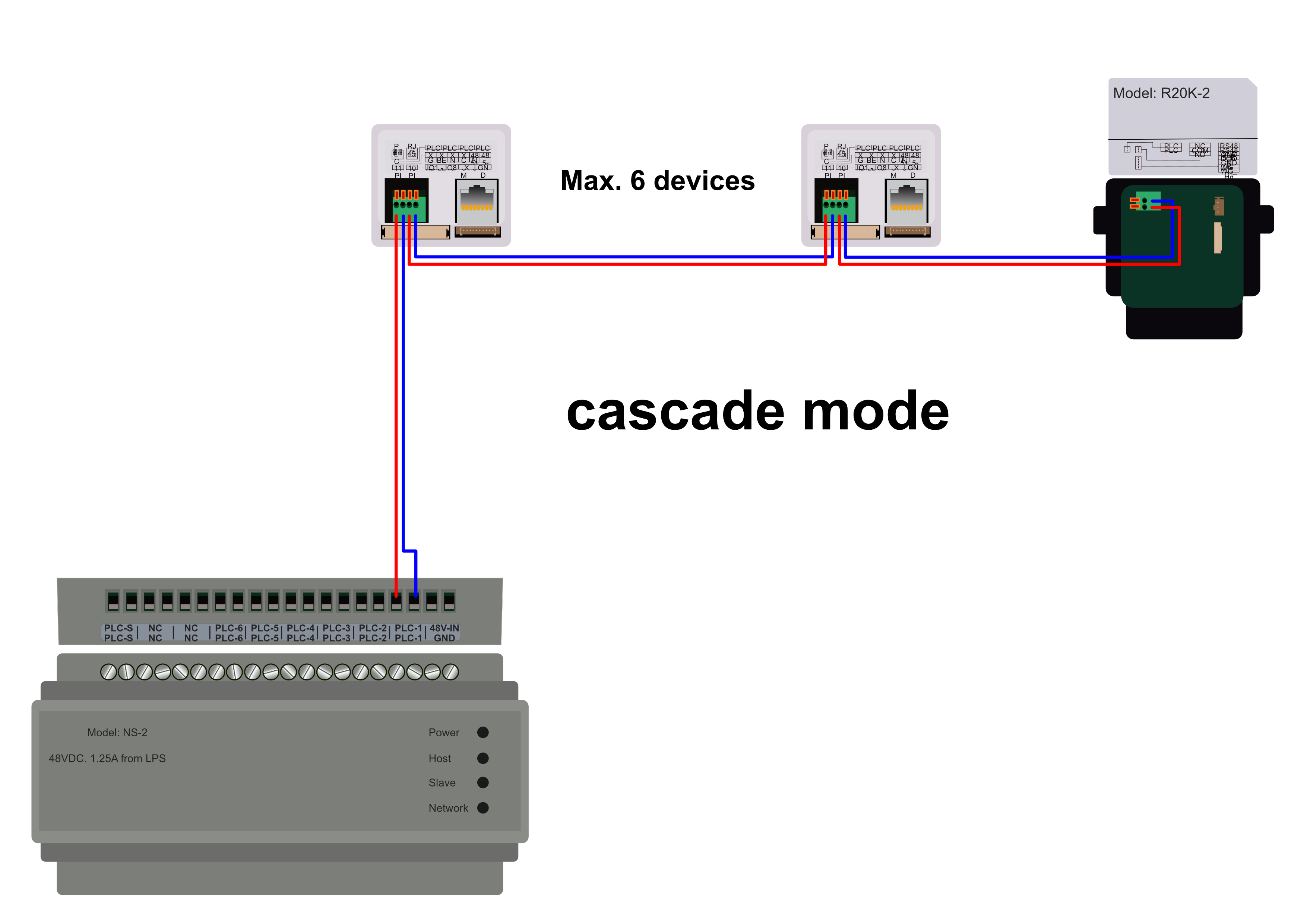

2-Wire devices wiring

Starting with the Akuvox AK-NS-2 2-wire IP network switch.

There is a max of 6 2-wire devices to be connected on one AK-NS-2 2-wire IP network switch.

This can be in cascade mode or parallel Akuvox 2-wire IP intercom devices.

Note: Only one outdoor unit per two-wire hub.

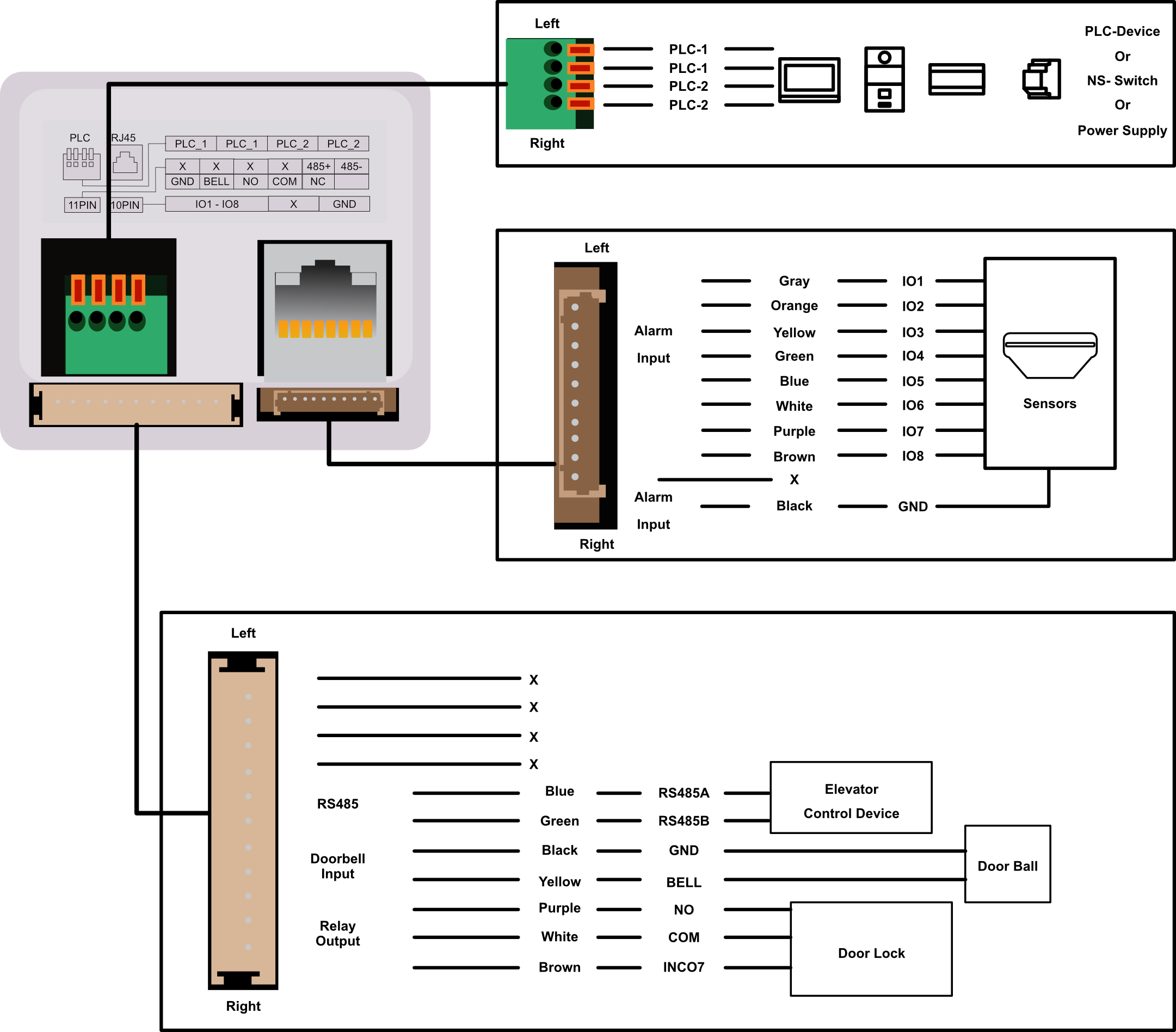

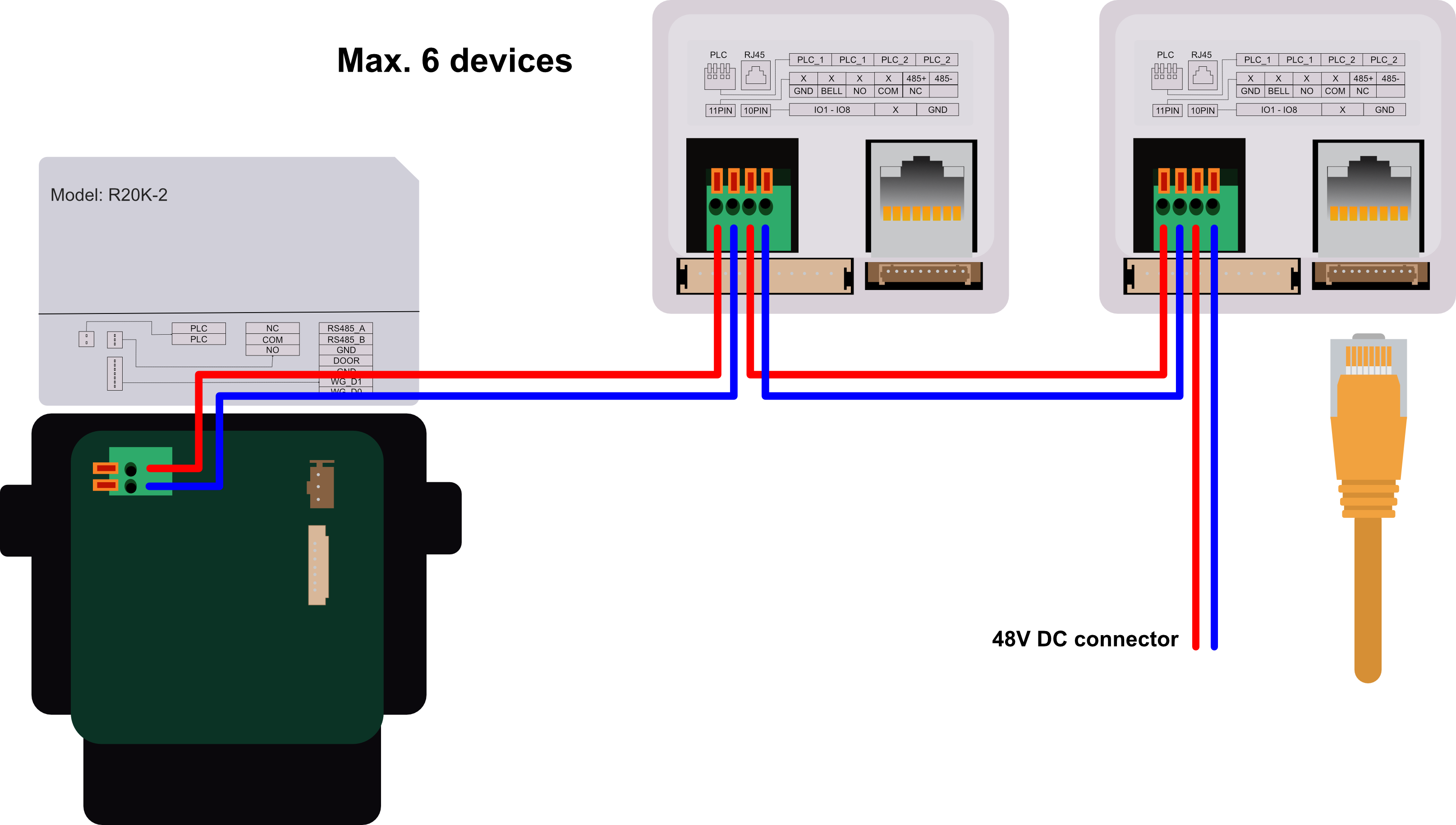

AK-C313W-2 Monitor wiring

The AK-C313W-2 monitor has two wire connections and one Ethernet.

The AK-C313W-2 can be used as a hub to connect up to 6 devices, or connected to the AK-NS-2 2-wire IP network switch.

Note: Only one outdoor unit per cascade

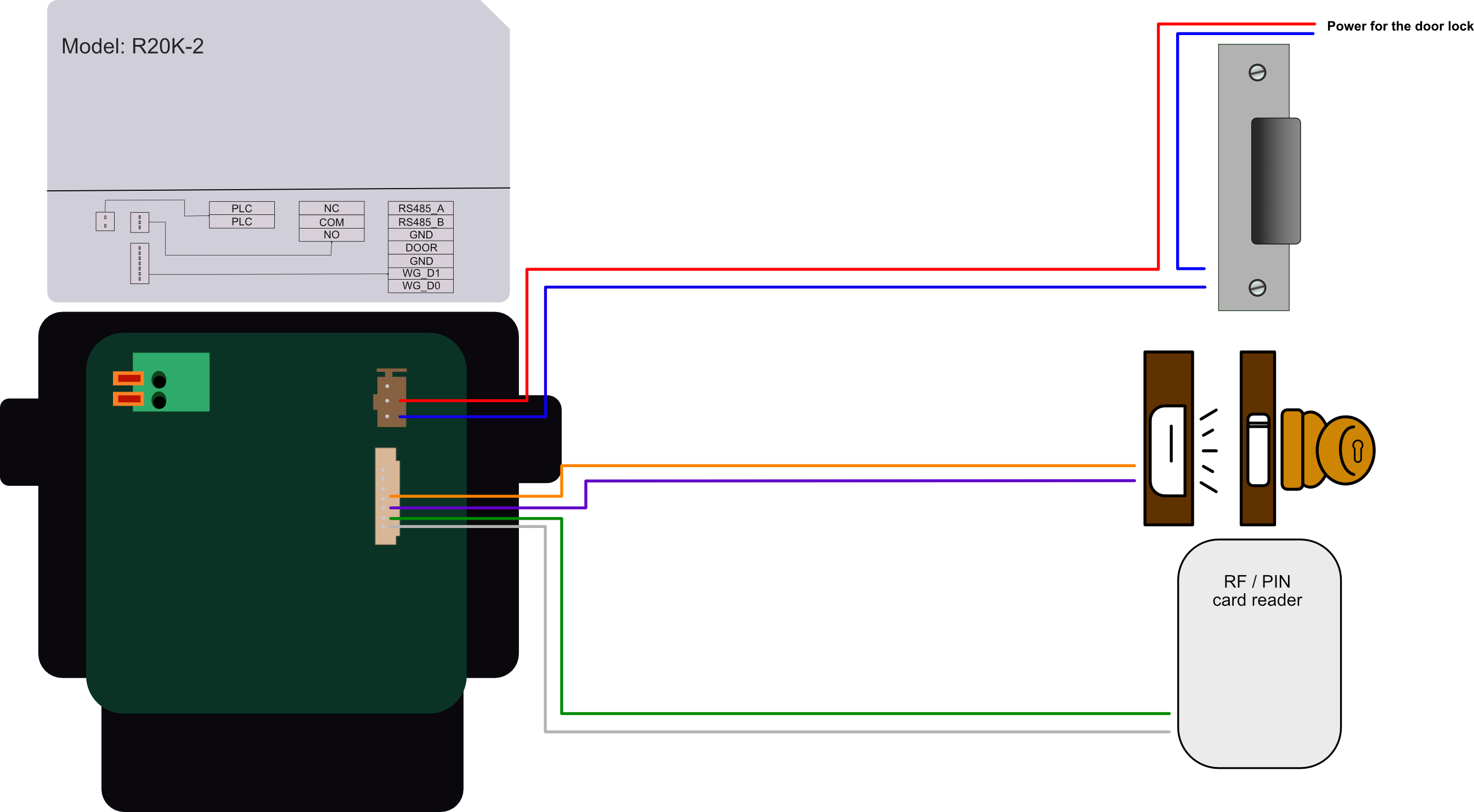

2-Wire Door unit wiring

The AK-R20K-2 and AK-R20A-2 has only one relay, and Wiegand in or output.

Warning: When you connect a device containing a coil, such as a relay or an electromagnetic lock, it is necessary to protect the intercom against voltage peak while switching off the induction load. For this way of protection, we recommend a diode 1 A / 200 V (included in the accessories) connected antiparallel to the device.

2-Wire monitor wiring
