03 - IP Wiring and installation

All IP door units are using PoE or PoE+

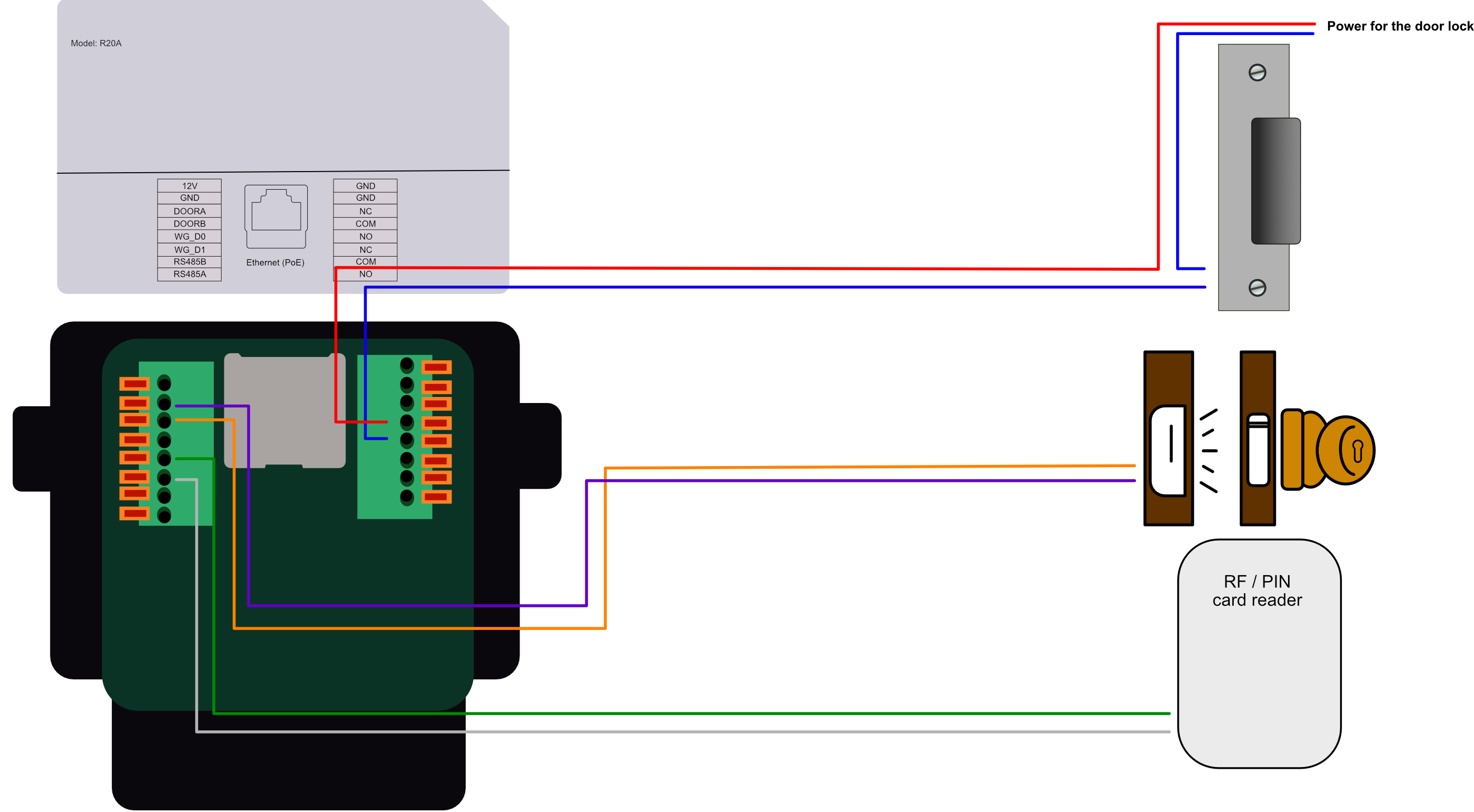

IP Door unit wiring

The IP door units have 2 or 3 relays, (this depending on the model) Wiegand in or output.

Warning: When you connect a device containing a coil, such as a relay or an electromagnetic lock, it is necessary to protect the intercom against voltage peak while switching off the induction load. For this way of protection, we recommend a diode 1 A / 200 V (included in the accessories) connected antiparallel to the device.

IP Monitor wiring
