Extra - Broadcast

Akuvox has the option to make a one-way call to several units simultaneously, which is called broadcast. The AK-VPR49G can be used as master monitor for a video door entry system, for example by the property manager.

Enter the web interface of the AK-VPR49G

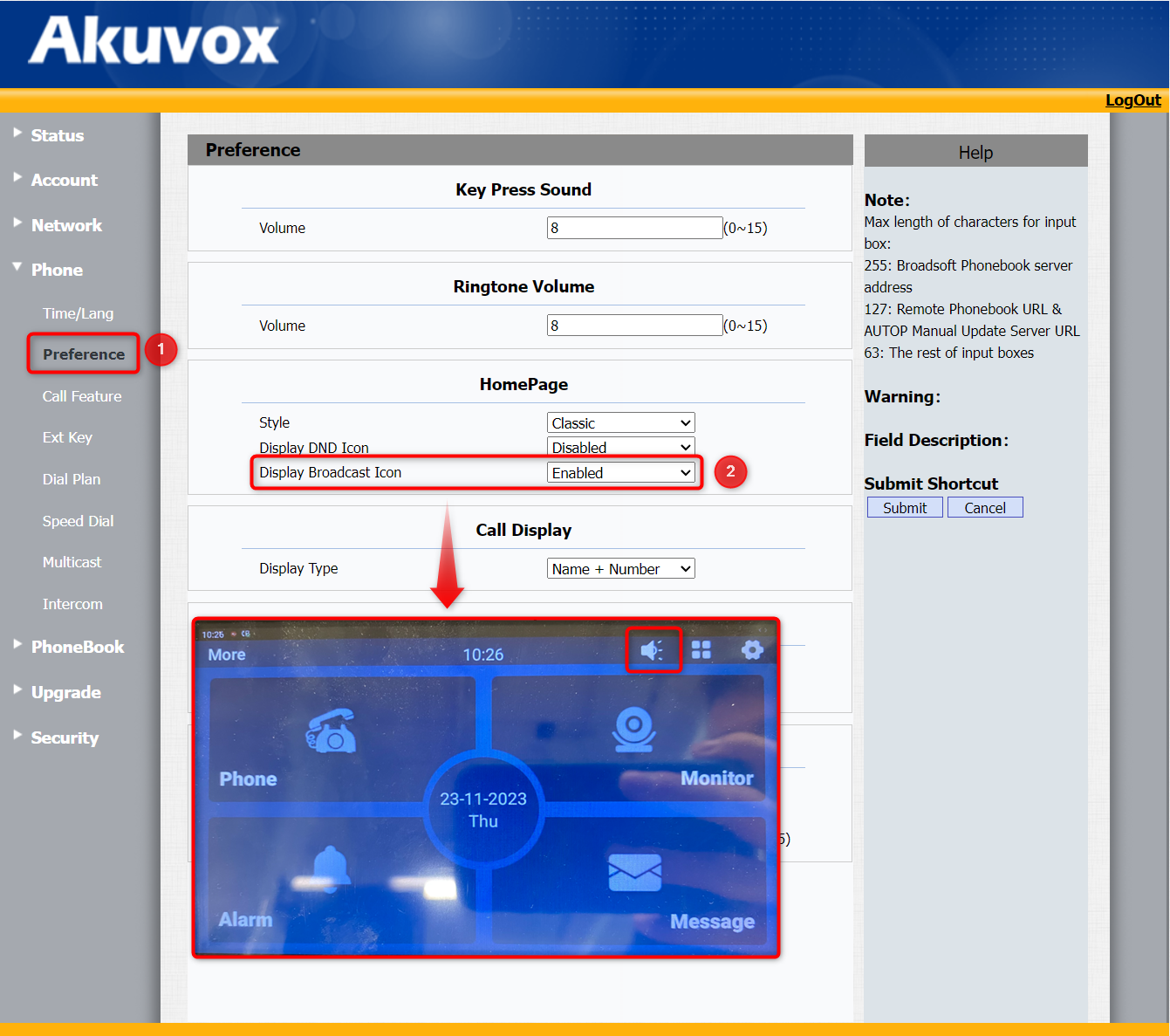

1. Preference

2. Enable the Broadcast Icon on the display

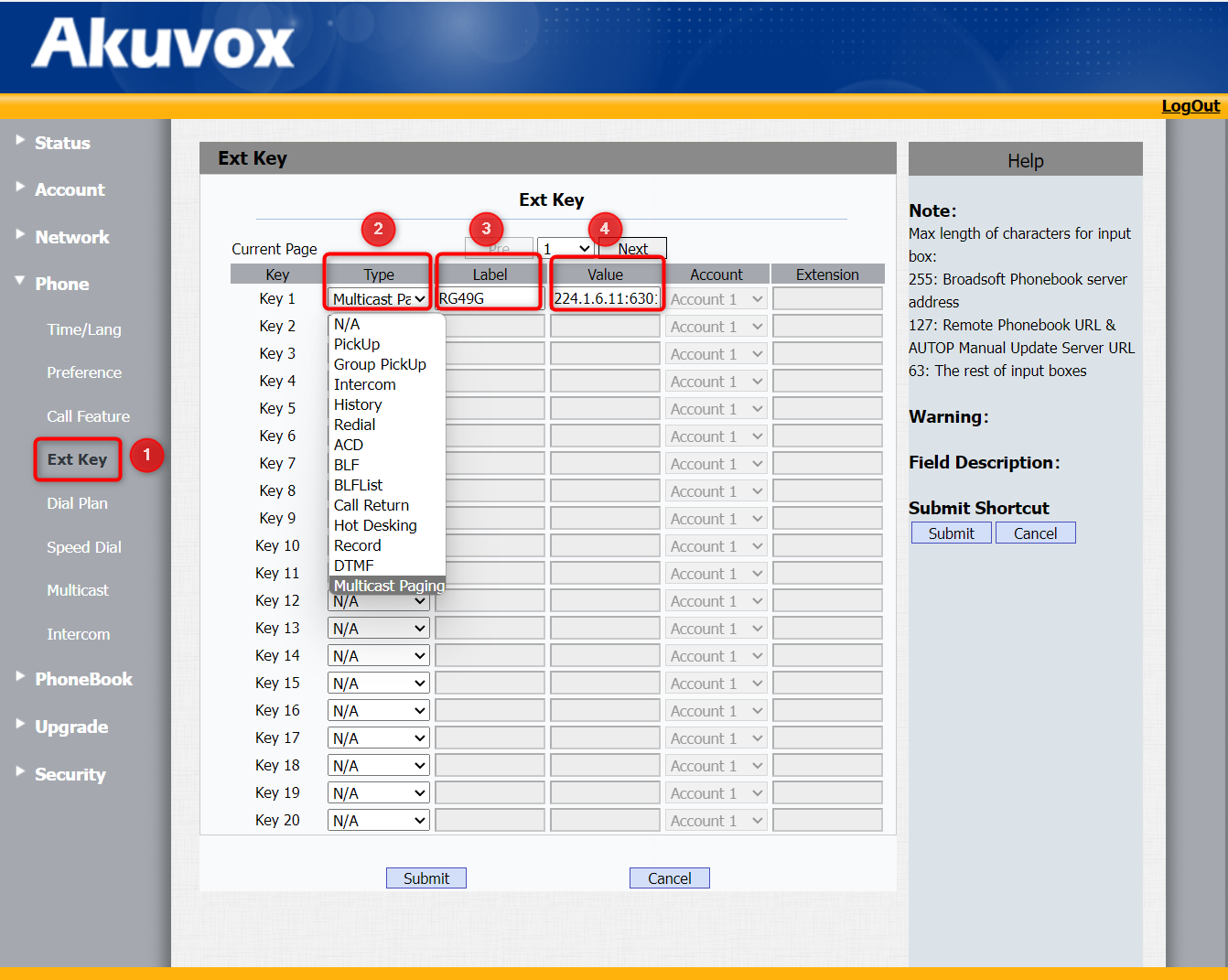

1. Select Ext Key

2. Type: Multicast Paging

3. Label: Give it a Label of your choice

4. Value: This address should consist of an IP address between 224.0.0.0 – 239.255.255.255, with a port around 20000

1. Select Multicast

2. Choose the Multicast Group

3. Enter the multicast Address (Range: 224.0.0.0 – 239.255.255.255) when the device serves as the caller

4. Enter the Listen Address (Range: 224.0.0.0 – 239.255.255.255) when the device serves as the callee

For the Models AK-X933W, AK-IT88S, AK-C319W the icon "All Calls" first needs to be enabled to show up on the Display. On all the other models, it is enabled by default.

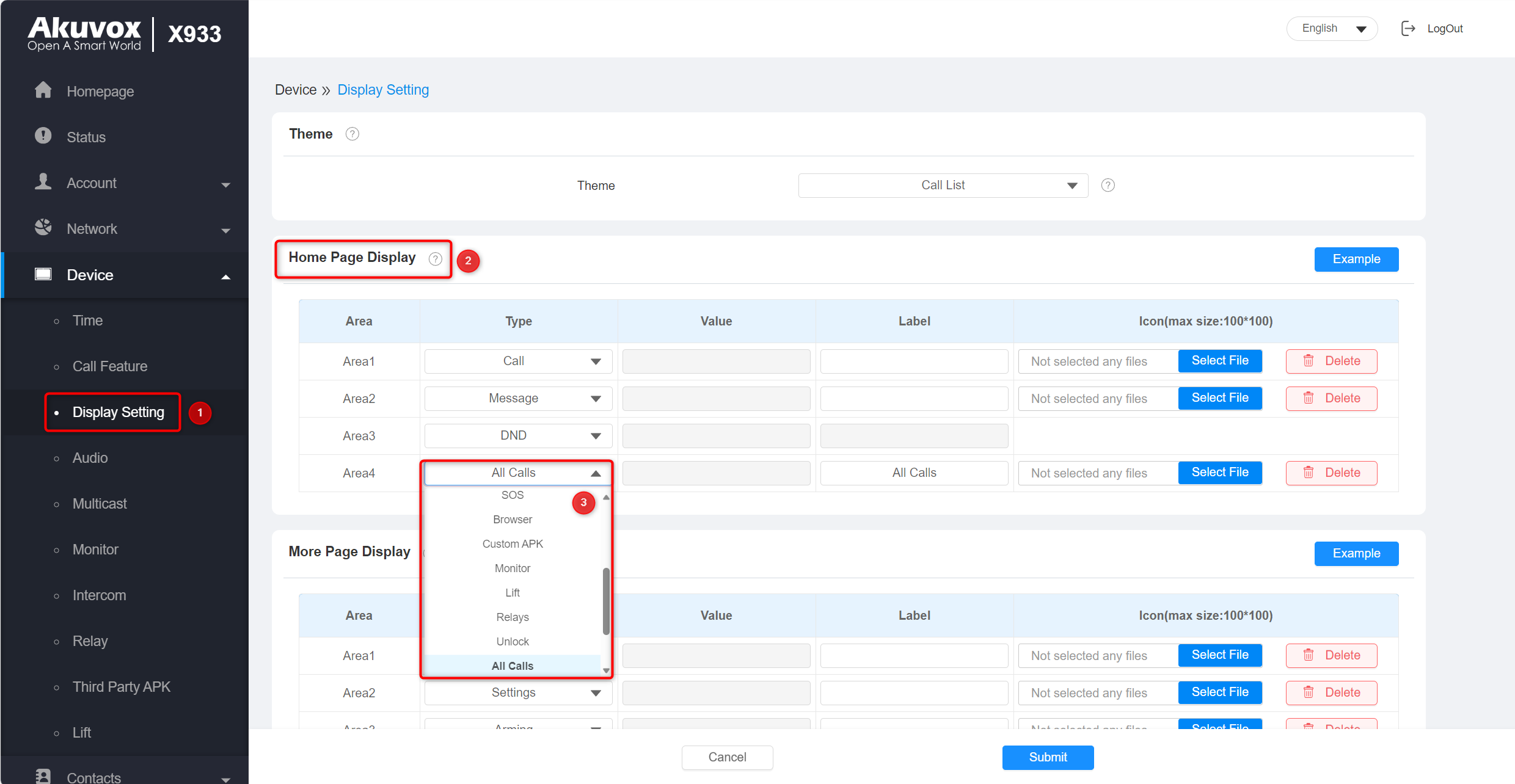

1. Display Settings

2. Home Page Display

3. Select All calls and give it a Label when needed
